Patient Monitor

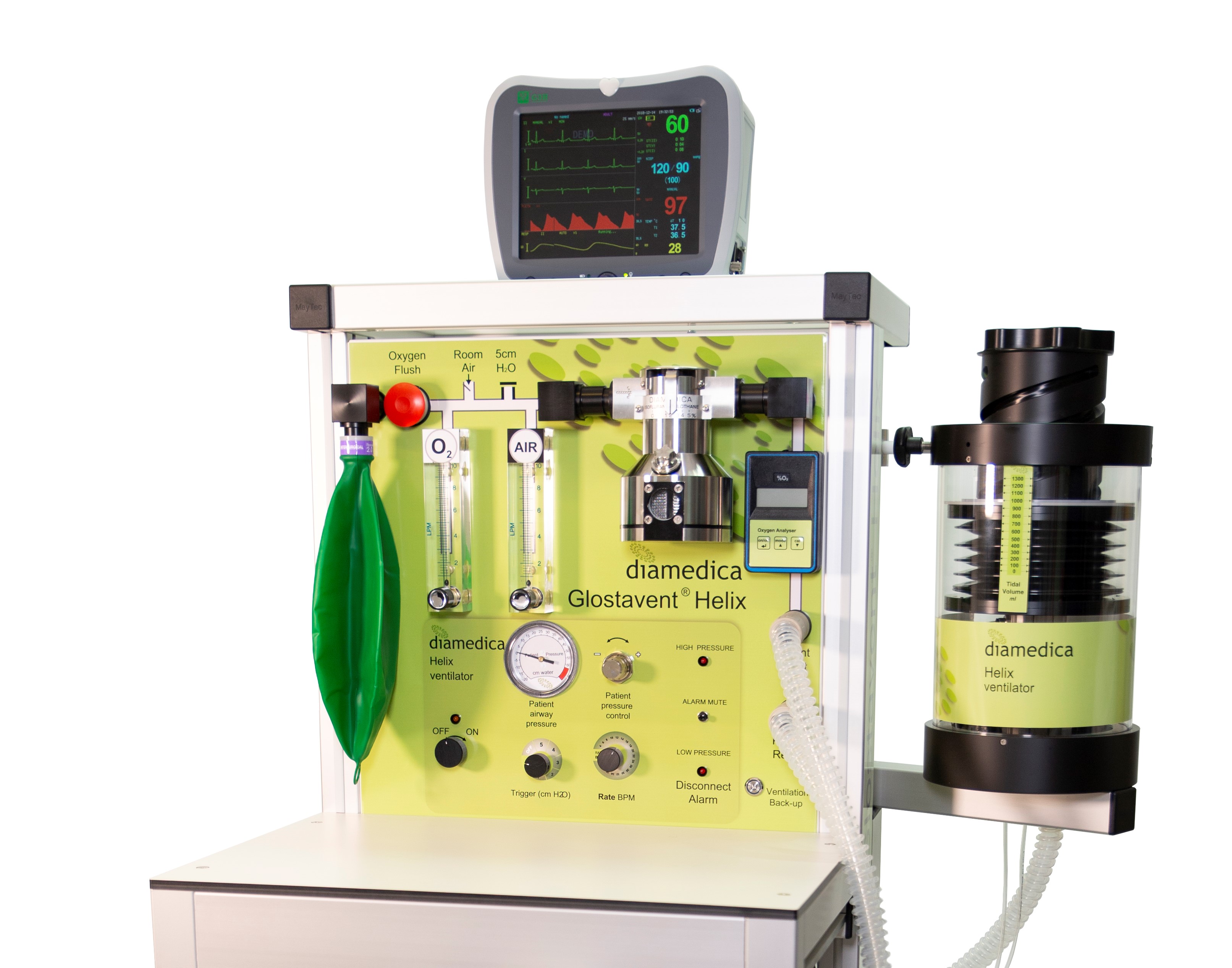

Patient monitor on glostavent helix
Patient monitor on glostavent helix Patient Monitor

About Patient Monitor

The G3H patient monitor has a combination of features, price and size that create a patient monitor ideally suited for use in remote locations and low income countries. This patient monitor can be supplied together with the Diamedica Glostavent® Anaesthesia machine and where necessary be powered by the UPS on the Glostavent. Alternatively the monitor can be supplied as a standalone unit.

Key Features

  • Light, portable and compact

  • Ideally suited for use in emergency rooms, pre and post operative care, ICU, operation rooms/theatres, labour and delivery. Also ideal for mobile use.

  • Adult, paediatric and neonate cuffs and Sp02 probes.

  • Standard configuration: ECG, NIBP, SpO2, HR/PR, 2-RESP, 2-TEMP,  ST analysis, Arrhythmia analysis. Optional configurations available including ETC02.

  • Application modes: Monitoring, diagnosis, operating

  • Operating menu: Multi-language interface selection. Easy operation with user-friendly menu structure. User-friendly dialogue interface with pop-up menus  and dialogue boxes

  • Protected against electrosurgical and defibrillation interference

  • 72 hours data storage

  • Intelligent audio and visual comprehensive alarm

  • Low power consumption, standby mode and built in rechargeable battery

View Full Specification
Baby in surgery

Product Information

Explore further product information via the links below.

Product Specification

Download

Spare Parts

Download

Would you like to find out more?

Specifications Patient Monitor

General

  • Display type: 8.4” colour TFT LCD screen with maximum 7-waveform data
  • Power Requirement: 100-240 VAC, 50/60Hz
  • Battery backup: 3 hours

Temperature (surface and rectal)

  • Number of channels: 2
  • Resolution: 0.1C

ECG

  • Input: 3 wires/5 wires ECG cable
  • Sweep speed: 6.25, 12.5, 25, 50mm/s
  • Heart rate range: 15-380 bpm
  • Calibration: ± 1mv SpO2

SpO2

  • Measurement range: 0 - 100 %
  • Plus measurement range: 30 - 250bpm

NIBP (Non-invasive blood pressure)

  • Measurement type: Adult, paediatric, neonatal
  • Measurement parameters: Systolic, diastolic, mean
  • Measurement method: Manual, automatic, continuous

Respiratory Rate

  • Nasal tube: 0 - 120 bpm (adult)
  • Resolution: 1bpm
